Welcome to Nwabali Aluminium, your trusted partner for premium aluminium solutions right here in Abuja. We take pride in being a leading manufacturer and supplier, dedicated to providing industries across Nigeria with materials that build a stronger future. Our focus is on delivering exceptional quality and reliability, starting with our robust Aluminium 5754 Bars, designed to meet the rigorous demands of modern engineering and construction projects with unwavering strength.
The Aluminium 5754 bar is part of the magnesium-alloyed 5xxx series, known for its excellent corrosion resistance, especially in marine environments. This alloy offers a great balance of strength and formability, with good weldability, making it a practical and durable choice. It’s these reliable mechanical properties that make it such a dependable material for challenging applications where performance really matters.
| Bar Wire Standard | ASTM B221, B211, B565, B316, AMS 4118 5052 |
| Bar Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |

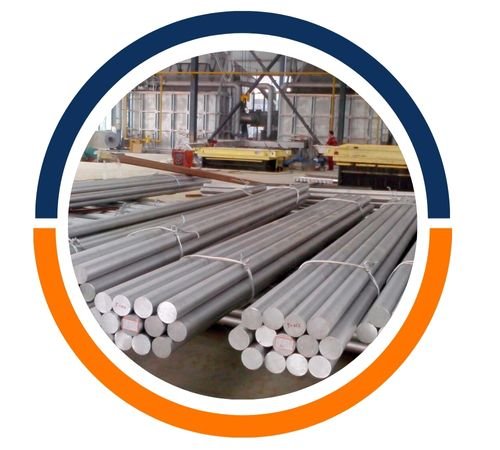

| Round bar size | Diameter: 3-~800mm |

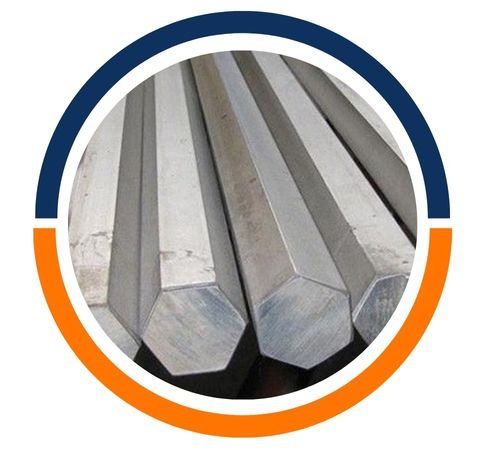

| Hex Bar size | 2-100mm A/F |

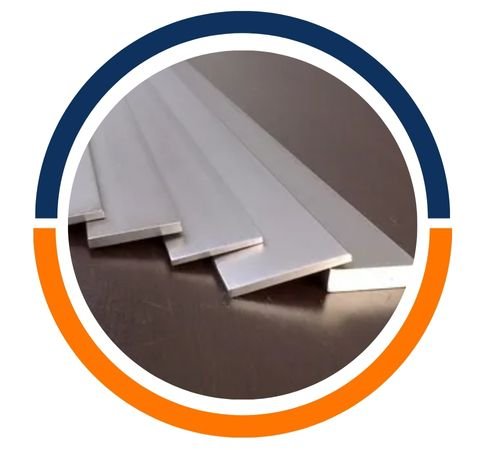

| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

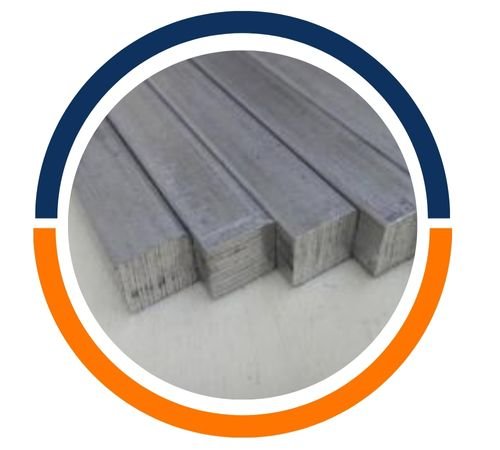

| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

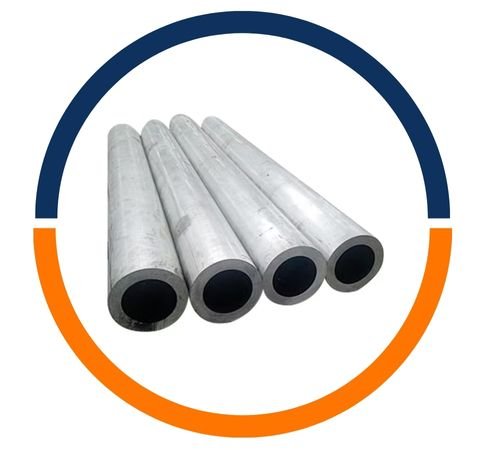

| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

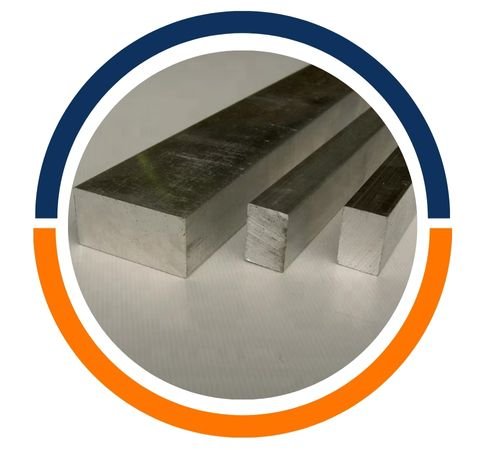

| Rectangular Size | 33 x 30mm to 295 x 1066mm |
| Bars Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Bar Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Tempers | Tempers range from dead soft annealed to ultra spring temper |
| Rolled Flat Bars Condition | Hardened & tempered, annealed |
| Cold Rolled Bar Technique | Aluminium Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Rounds Bar Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Grade | Fe | Si | Mg | Mn | Cu | Zn | Cr | Ti |
| Aluminium 5754 | 0.0 – 0.30 | 0.0 – 0.40 | 2.60 – 3.60 | 0.0 – 0.50 | 0.0 – 0.05 | 0.0 – 0.15 | 0.0 – 0.20 | 0.0 – 0.10 |
| Grade | Tensile Strength | Hardness | Elongation % |
| Aluminium 5754 | 190 – 260Mpa | 52 HB | 12 Min % |
| STANDARD | UNS | WERKSTOFF NR. |
| Aluminium 5754 | A95754 | 3.3535 |
Nwab Aluminium based in Abuja, Nigeria is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 5754 Bars to meet specific project needs. Our team at Nwab Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@nwabalialuminium.com
You’ll find Aluminium 5754 bars hard at work in many critical areas. They are a go-to material for marine components like boat hulls and offshore walkways, as well as in architectural structures, vehicle bodies, and pressure vessels. Their resilience also makes them ideal for chemical tankers and various industrial applications, proving their versatility and strength in projects that require a material that can truly stand the test of time and the elements.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
