Aluminium 5086 Sheets and Plates manufacturer in Nigeria

Aluminium 5086 Sheets Dealer in Lagos, Alumnium 5086 Hot Rolled (HR) Sheet and Plates Supplier in Lagos, Al 5086 Sheets in Port Harcourt, Aluminium Alloy 5086 Plates Size Chart, Alumnium 5086 Sheet Price in Kano, Aluminium 5086 Cold Rolled (CR) Sheet Supplier in Nigeria, Aluminium 5086 Sheet Stockist in Ibadan, Aluminium 5086 Sheets and Plates Exporter in Nigeria, Al 5086 Sheet Stockist in Abuja, Alumnium Alloy 5086 Plates Supplier in Ibadan

Nestled in the heart of Abuja, Nwabali Aluminium stands as a trusted partner for industries requiring robust and reliable materials. We take pride in being a leading manufacturer and supplier, specializing in the provision of high-grade Aluminium 5086 sheets and plates. Our commitment is to deliver not just a product, but a durable solution that meets the rigorous demands of various professional applications, backed by a dedication to quality and customer satisfaction that defines our operations in Nigeria’s vibrant capital.

The strength of Aluminium 5086 lies in its specific composition, primarily aluminium with a significant addition of magnesium. This alloy is celebrated for its exceptional resistance to corrosion, especially in marine environments, making it a go-to material where durability is non-negotiable. It offers an excellent strength-to-weight ratio, maintaining impressive toughness even in welded structures. This combination of properties ensures that components built from 5086 can withstand harsh conditions while remaining relatively light and easy to work with during fabrication.

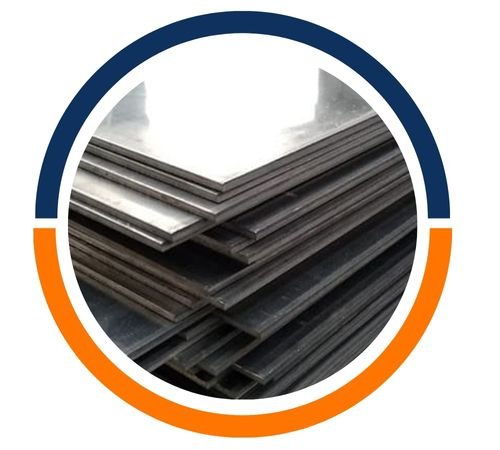

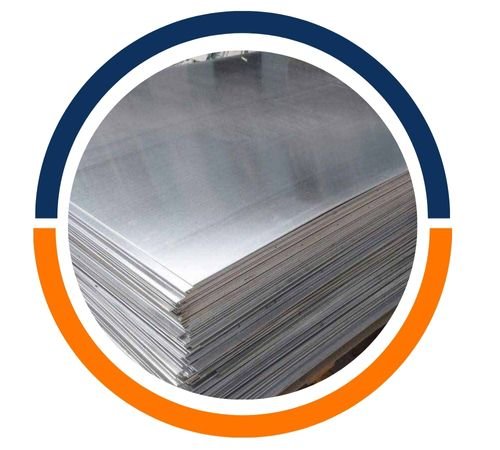

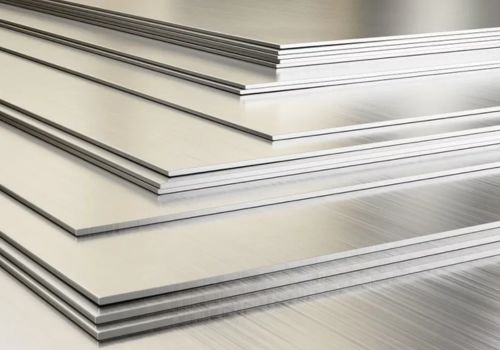

Aluminium 5086 Alloy Sheets

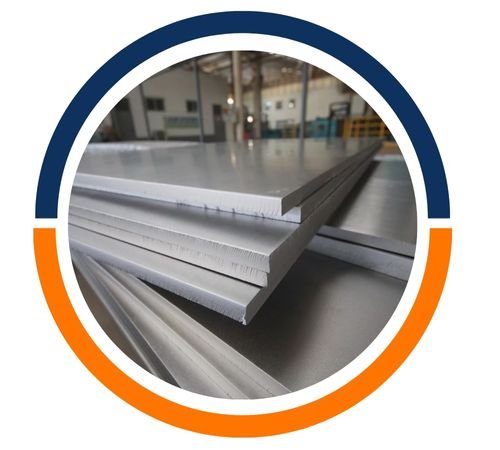

Aluminium 5086 Hot Rolled Sheets

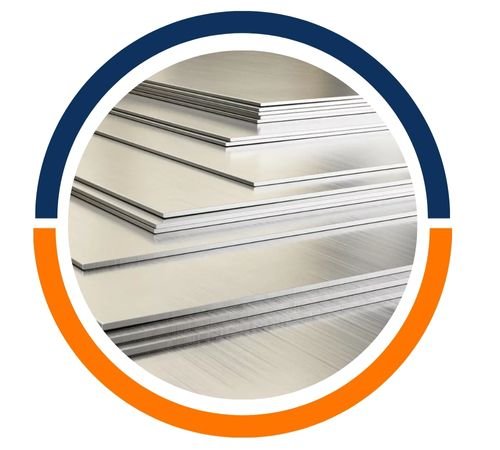

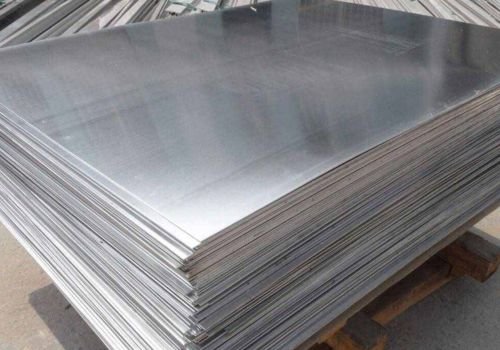

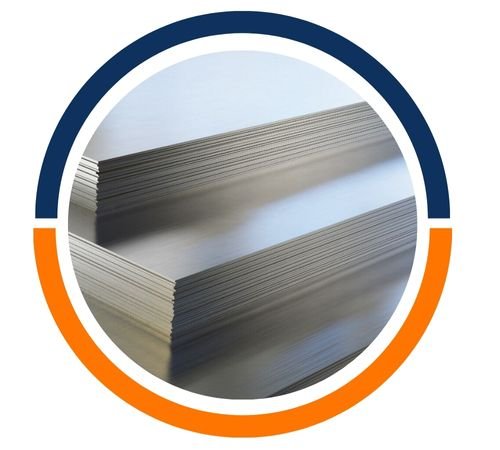

Aluminum 5086 Cold Rolled Sheets

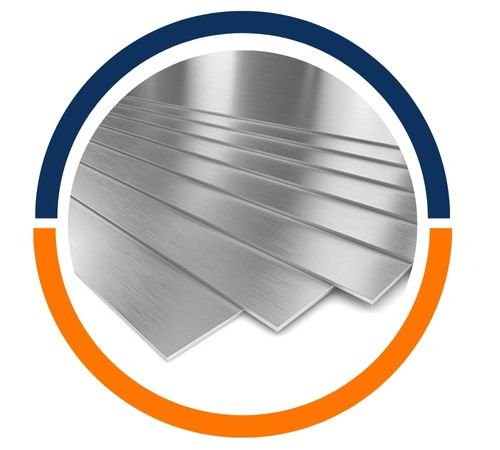

Aluminium 5086 Clad Sheets Distributor in Nigeria, Al 5086 Perforated Plates Supplier in Abuja, Aluminium Alloy 5086 Sheet Weight Chart, Al 5086 Plates Exporter in Ibadan, Alumnium 5086 Polished Sheets Manufacturer in Lagos, Aluminium 5086 Shim Sheet and Plate Price List in Nigeria, Aluminium 5086 Chequered Plates Sizes in mm, Alumnium Alloy 5086 Hot Rolled Plate Distributor in Port Harcourt, Al 5086 Sheets and Plates Kano

Specifications of Aluminium 5086 Sheets and Plates

Standards : ASTM B209 / ASME SB209

Temper : O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38

Thickness : 0.2-250

Width : 100-2600

Length : 500-10000

Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.

Finish :Mill, Customer specific finish

Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet

Chemical Compositions of Aluminium 5086 Sheets and Plates

Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others, each	Others, total	Al
0.4	0.5	0.1	0.20-0.70	3.5-4.5	0.05-0.25	0.25	0.15	0.05	0.15	Balance

Mechanical Properties of Aluminium 5086 Sheets and Plates

Proof Stress	Tensile Strength	Hardness Brinell	Elongation
125 Min MPa	275 – 350 MPa	75 HB	12 Min %

Get a Customized Quote for High-Quality Aluminium Products Tailored to Your Needs!

Types of Aluminium 5086 Sheets and Plates

Largest Aluminium 5086 Sheets and Plates Manufacturer and Exporter in Abuja, Nigeria

Nwab Aluminium based in Abuja, Nigeria is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.

Equivalent Grades of Aluminium 5086 Sheets and Plates

European Standard	OLD	WNr	UNS	ISO	USA (AA)	GERMANY (DIN)
AW-AlMg4	AG4MC	3.3545	A95086	AlMg4	5086	AlMg4Mn

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Sizes Chart Of Aluminium 5086 Sheets and Plates

Sizes (mm)	Theoretical Mass KG/Plate
2000 X 1000 X 0.5	2500 X 1250 X 0.5
2000 X 1000 X 0.7	2500 X 1250 X 0.7
2000 X 1000 X 0.9	2500 X 1250 X 0.9
2000 X 1000 X 1.2	2500 X 1250 X 1.2
3000 X 1500 X 1.2	2000 X 1000 X 1.6
2500 X 1250 X 1.6	3000 X 1500 X 1.6
2000 X 1000 X 2.0	2500 X 1250 X 2.0
3000 X 1500 X 2.0	2500 X 1250 X 2.5
2.79	4.36
3.91	6.10
5.02	7.85
6.74	10.46
15.01	8.93
13.95	20.09
11.16	17.44
25.11	21.80

Are Custom Sizes Available For Aluminium 5086 Sheets and Plates?

Yes, we offer custom sizes for Aluminium 5086 Sheets and Plates to meet specific project needs. Our team at Nwab Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@nwabalialuminium.com

Uses of Aluminium 5086 Sheets and Plates

This unique set of properties makes Aluminium 5086 sheets and plates incredibly versatile. They are extensively used in the marine industry for constructing boat hulls, gangways, and offshore platforms. Beyond the water, you’ll find this alloy in transportation for building robust truck bodies and railway cars, as well as in architectural applications requiring durable facades or structures exposed to the elements. Its reliability also makes it a preferred choice for chemical tanks and other industrial components where long-term performance is critical.
